Camera-Based Patient Identification Using dlib & OpenCV for a Large Hospital Group

Client

A large, multi-branch hospital group in the Middle East handling thousands of patients daily across OPD, emergency, diagnostics, and IPD.

They wanted a fast, low-friction way to identify patients and pull up their information using simple cameras no extra expensive hardware.

---

Project Overview

The client’s staff were spending a lot of time:

• Searching patient IDs in the system

• Confirming details manually

• Passing patient information between different departments

Mistakes and delays in patient identification could:

• Slow down treatment

• Cause confusion in busy departments

• Increase clerical workload

We built an Android-based solution using dlib and OpenCV, compiled natively for mobile, that allows:

• A webcam or Android device camera to detect and recognize patients

• Automatic retrieval of patient details from the hospital system

• Instant routing of information to:

  • Assigned doctors

  • Nursing stations

  • Reception / billing

  • Other required hospital systems (via APIs)

---

Goals

• Camera-based, touch-minimal patient lookup

• Fast and reliable recognition in real-world hospital lighting

• Integration with existing HIS/EMR systems

• Secure handling of patient data (privacy by design)

• Works with Android tablets/phones and standard USB webcams (where supported)

---

Key Challenges

1. Hospital Lighting & Environment

   • Mixed lighting (white, yellow, dim, bright)

   • People with masks, head coverings, or accessories

   • Crowded environments (waiting areas, OPD)

2. Performance on Android

   • Heavy image processing and face recognition on mobile hardware

   • Need for fast response (1–2 seconds at most)

3. Accurate Identification

   • Many patients with similar appearance

   • Need low false-positive rate

   • Must work with updated face data (e.g., new registration photos)

4. Integration with Hospital Systems

   • Securely connecting to existing databases / APIs

   • Mapping recognized face → patient ID → doctor and department routing

---

Technical Solution

1. Compiling dlib & OpenCV for Android

We created a custom native build:

• Compiled OpenCV (C++ core + necessary modules) for Android (ARM/ARM64)

• Compiled dlib (for face detection/recognition) as .so libraries

• Integrated both via JNI into the Android app (Kotlin/Java)

Optimizations:

• Enabled NEON & SIMD where possible

• Stripped unused modules to reduce APK size

• Tuned build flags for performance on hospital devices

---

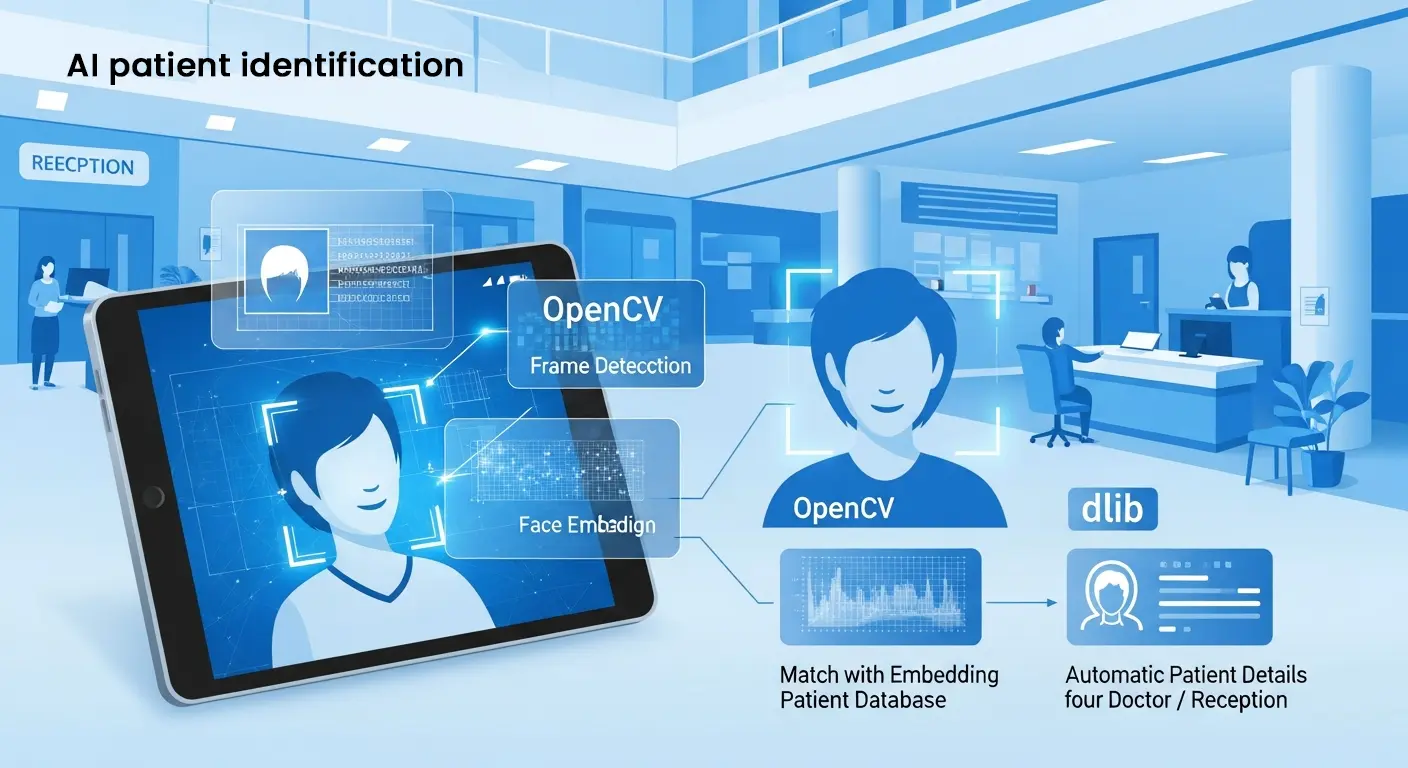

2. Face Detection & Recognition Pipeline

Using OpenCV + dlib, we built:

• Face detection using either:

  • HOG or CNN-based detector (depending on device capability)

• Face alignment (standardizing pose)

• Feature embedding (128D/face representation)

• Matching against database of stored patient embeddings

Steps:

1. Camera captures patient face.

2. OpenCV pre-processes frame (resize, normalize, lighting adjustments).

3. dlib detects face and extracts embedding.

4. Embedding is matched with patient profiles on the server or local cache.

5. Identified patient ID is returned.

If confidence is below threshold → system asks staff to confirm or scan ID manually.

---

3. Integration with Hospital Information System (HIS/EMR)

After patient identification:

• The app calls secure APIs to fetch:

  • Patient demographics

  • Current visit/admission details

  • Assigned doctor

  • Department / ward

  • Pending tests / appointments

Then the system:

• Displays the patient details on the Android device

• Sends relevant information to:

  • Doctor’s view

  • Nursing dashboard

  • Reception/billing terminal (if needed)

  • Other systems via internal APIs / message queue

---

4. Multi-Location and Role-Based Use

The system is used in:

• Reception / Registration – quick pull-up of returning patients

• OPD Entry – doctor instantly sees who’s entering

• Nursing Stations – confirm patient before medication or procedures

• Diagnostics / Lab / Radiology – avoid mislabeling or wrong patient mapping

Role-based access:

• Doctors see clinical data

• Reception sees identity + billing info

• Admin sees logs and system health

---

5. Security & Privacy

Because this deals with sensitive health data, we implemented:

• Encrypted communication (HTTPS / TLS)

• Authentication & authorization for app users

• Local data minimization (no raw images stored on device unless required)

• Encrypted storage for embeddings or tokens

• Audit logging of lookups (who accessed which patient, when)

---

Architecture (Text Diagram)

---

Results & Impact

⚡ Faster Patient Identification

Front-desk and nursing staff can identify returning patients in 1–2 seconds using just the camera.

🧠 Reduced Manual Search

Significant reduction in manual searching of patient IDs/names in the system, especially in high-traffic OPD hours.

🧾 Fewer Administrative Errors

Improved accuracy in mapping patients to:

• Correct doctor

• Correct visit/admission

• Correct department

🏥 Better Patient Flow

Smoother experience from registration → consultation → tests → discharge.

🔒 Data Security Preserved

All data handled under strict security and privacy guidelines, with controlled role-based access.

---

Conclusion

By compiling dlib and OpenCV for Android and integrating them into a custom app for a large Middle Eastern hospital group, we delivered a camera-based patient identification system that:

• Speeds up patient handling

• Reduces manual work

• Improves accuracy and safety

• Seamlessly connects with the hospital’s existing systems

This solution turns ordinary Android devices and webcams into smart, hospital-aware terminals that automatically route patient information to the right doctor and the right place at the right time.
